29.03.19

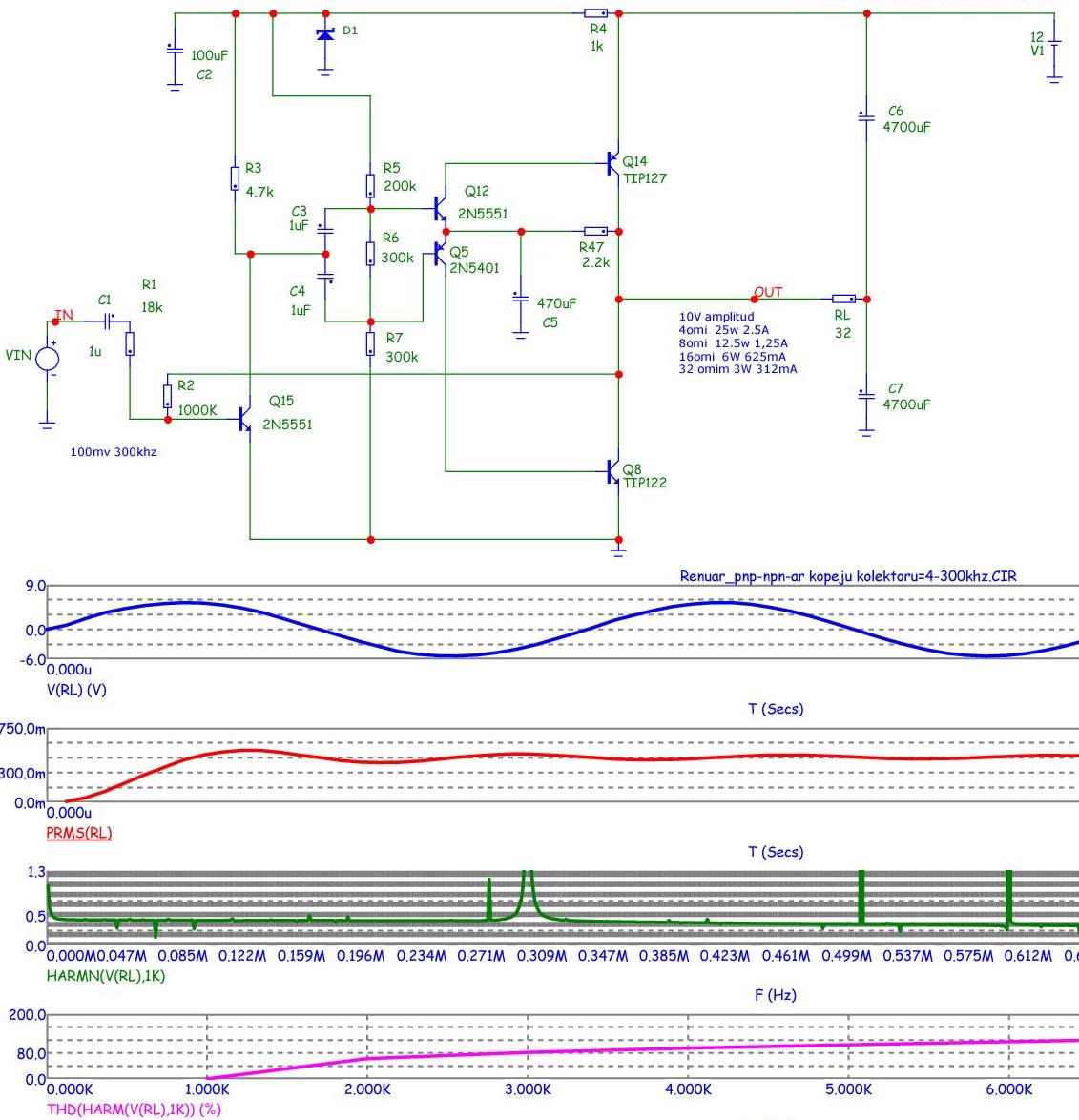

Spēlējos ar MicroCap ... Mishina coil

Notestēju savas idejas!
2N5551 2N5401 TIP127 TIP122

2N5551

BD681 FP1016 FN1016

Tip122 tip127

tip142 tip147
KT315 reiz 10
Papildināju 29.03.2019:
"Mishina coil" autogenerator
Laikam šo shēmu būs jāsalodē.
BD 681 BD682 = TIP122 TIP127 = TIP142 TIP147 = FP1016 FN1016 ...
Q3 Q4 Q5 = BD681 = KT602 = KT606 = KT801 ...

šī shema ir laba ka var barot līdz 100V,  un ar augstu ieejas spriegumu 100V  nenodedzinot shēmu
pastiprinājuma koificients 10 = R5/R4
kropļojumu koificients stigri atkarīgs no Q3 un Q4 miera stāvokļa patērētās jaudas = ap 2W ir OKEI
300kHz
